Unisex Smart Watch with Apps round Shape Heart Rate Monitor Smart Watch Medical Grade Level Smart Watch with PPG ECG
- Supported CFDA medical certification ,
- Max86176, and 512 HZ ECG rate
- Medical grade ECG measurement
- Automatic infrared blood oxygen measurement
- Sleep apnea monitoring (snoring monitoring)
- HRV Lorentz scatter diagram
5.0
model:
G08
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Basic parameters | Product type | Smart watch (Medical Grade, electrocardiographic, ECG function) | |||
| Features | Supported CFDA/FDA medical certification , Max86176, and 512 HZ ECG rate | ||||
| Shell material & color | Shell: Zinc alloy + vacuum plating (black, silver) Bottom shell: PC+ABS+Medical grade 316 stainless steel sheet Strap: TPU strap (black), leather strap (black, brown, dark brown) |
||||
| Compatible System | Android 4.4 and above，iOS 8.2 and above | ||||

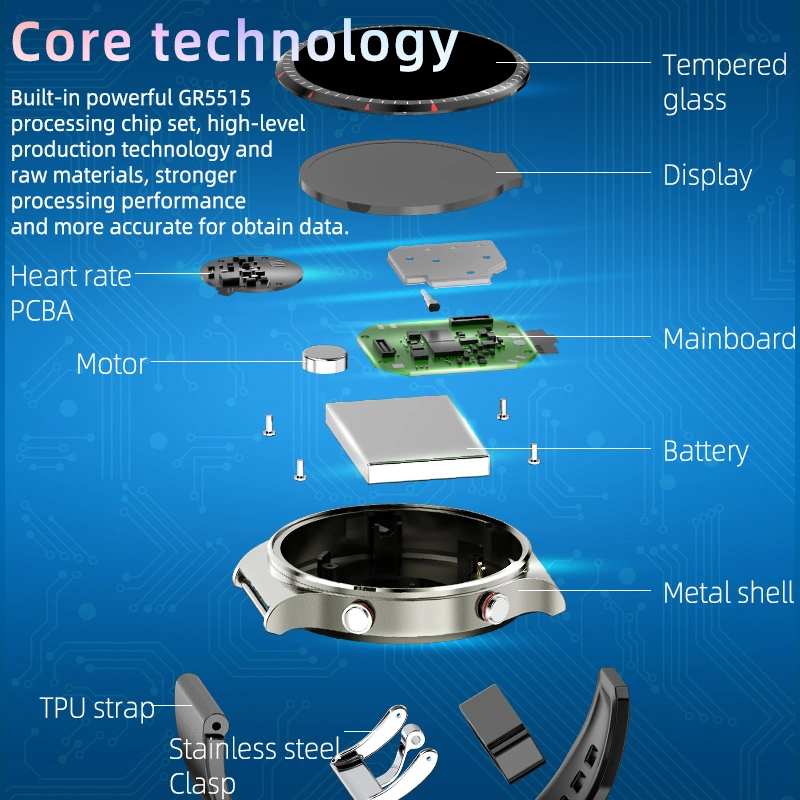

| Hardware parameters | Processor (MCU main control) | GOODIX5515 | |||
| Analog Front End chip | Max86176, and 512 HZ ECG rate Supported CFDA/FDA medical certification | ||||
| Optical lens | Fresnel Lense | ||||
| Temperature sensor | MAX30208 Temperature sensor | ||||
| Blood oxygen sensor | SRAM 2201 red light, infrared light and green light | ||||
| Accelerometer sensor | STK8321 3-axis sensor (G-SENSOR) | ||||
| Display | Tempered glass+IPS HD TFT 1.3 inches 240*240DPI | ||||
| Battery capacity | Pure cobalt lithium battery 230 mAh with 7-10 days of use, 30 days of standby | ||||
| Touch | CST816T full screen touch | ||||
| Vibration motor | Mute vibration | ||||
| Bluetooth | 5.1BLE (low power consumption) | ||||
| Interface | Physical buttons | 2 Buttons | |||
| Charging interface | Magnetic charging with short circuit protection | ||||
| Charging time | 2-3 hours | ||||
| Functions | Main functions | Medical grade ECG measurement | Automatic infrared blood oxygen measurement | Sleep apnea monitoring (snoring monitoring) | HRV Lorentz scatter diagram |
| Accurate Scientific sleep monitoring | Breathing training | Heart rate monitoring | 10 Multi-sport modes | ||
| Female menstruation and ovulation reminder | Body temperature measurement | Exercise measurement (step/calorie/distance | Alarm clock | ||
| Information reminder | Turn wrist bright screen | Remote photographing | Call reminder/reject | ||
| OTA upgrade | Music control | Sedentary reminder | Stopwatch function | ||
| WeChat Motion Sync | Multiple dials | Heart rate alarm | |||
| Supported languages | Watch language support: Chinese, English, Japanese, French, German, Italian, Spanish, Russian, Portuguese | APP language: Chinese, Traditional, English, Japanese, German, Russian, Italian, French, Spanish, Portuguese, Vietnamese, Korean, Persian (Arabic) | |||
